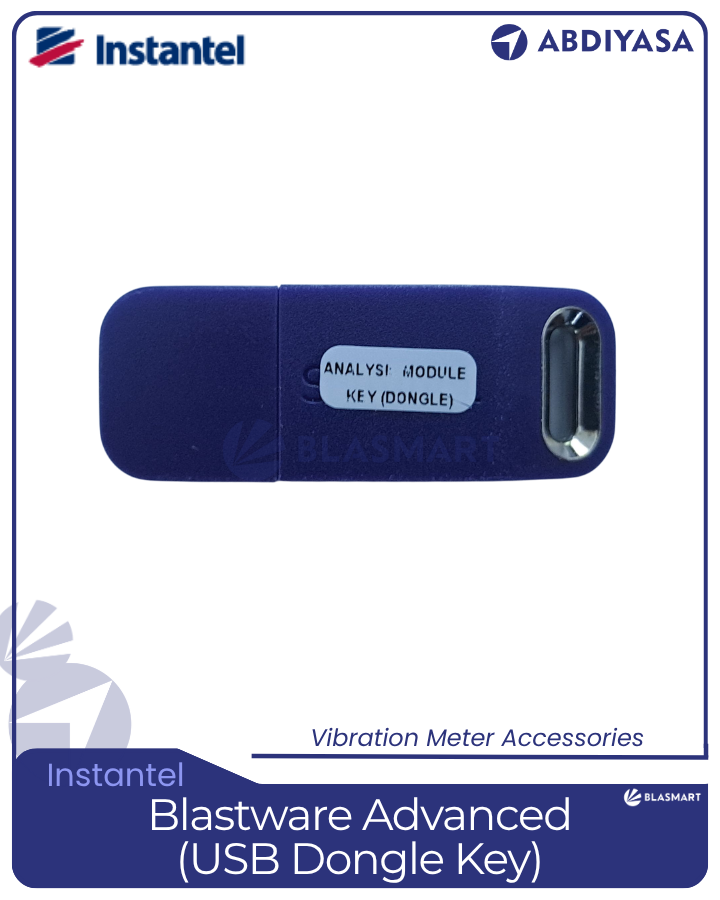

INSTANTEL Blastware Advanced (USB Dongle Key)

VIBRACORD Gaia Main Unit (4 Channel)

5.0

Gaia main unit with 4 channels for measurement: 3 for vibration and 1 for air overpressure.

Vibracord Gaia is the choice for you when ground vibration and air overpressure monitoring is challenged by the extreme and rugged condition.

This combination does not exist.

Copy Link

copy

Link Copied

Category :

Vibration Meter Vibration Meter Accessories

Description
Reviews

Vibracord Gaia is an advanced ground borne blasting vibration monitoring solution designed for use in challenging quarrying and environmental conditions.

Contained within a strong aluminium case and manufactured by equipment specialist, Vibraquipo, Gaia features a hi-contrast illuminated LCD screen, designed to be effective under all light conditions.

It’s user friendly and recommended for portable vibration measurement applications.

APPLICATION

Gaia includes one 3-axis block of geophones and one microphone to record air overpressure. Using Gaia, vibration waveforms, timings, amplitudes and values can all be analyzed. The FFT can be performed within the desired part of the record and mathematical functions applied as filters, integrations, derivatives and RMS.

ADVANTAGES:

Compact and robust equipment
High accuracy data capture
Small, portable unit for shotfiring activity
Regression analysis module included
Calculate the distance and charge the model with data from previous records
Generate data summaries and detailed waves

SPECIFICATIONS:

Number of channels	4 (One 3-Axis block of geophone + 1 microphone).
Sample rate	1024 sps
Frequency response	2 – 250 Hz (ISEE) 1-315 Hz & 1-80 Hz (DIN 45669-1)
Trigger modes	Automatic
FFT Calculation	Computer
Data transfer modes	SD Card
Data visualization	Screen
Screen	LCD Screen 4x20 characters
Keyboard	8 keys
Data storage memory	1000 records
Internal power supply	Li-Ion rechargeable battery
Dimensions	165 x 105 x 55 mm
Weight (Without accessories)	0,85 kg
Environmental	IP-65 (Equipment) IP-68 (Geophones)

Suggested Alternatives

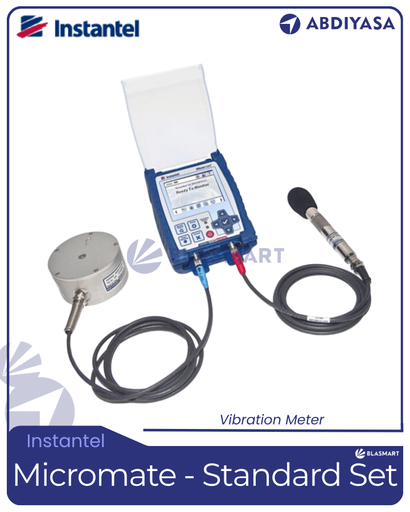

INSTANTEL Micromate - Standard Set

0.0

A standard package of Instantel Micromate with all you need to monitor ground vibration and air overpressure at the same time from activities of mining, construction, pile driving, etc.

Includes:
1 Triaxial ISEE Geophone with Spikes
1 Linear Microphone with Stand
1 Protective Boot and Cover
1 Universal Charger

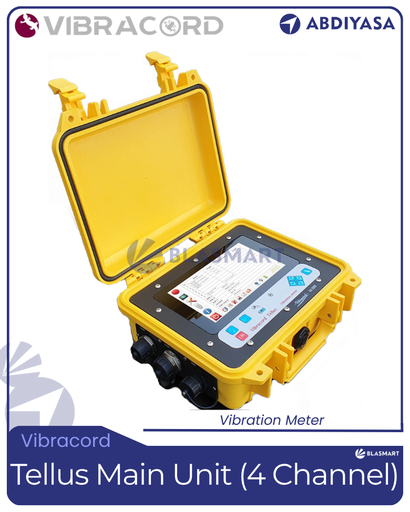

VIBRACORD Tellus Main Unit (4 Channel)

0.0

The latest innovation from Vibracord, with all you ever need in a vibration meter.
Monitor ground vibration and air overpressure at the same time.

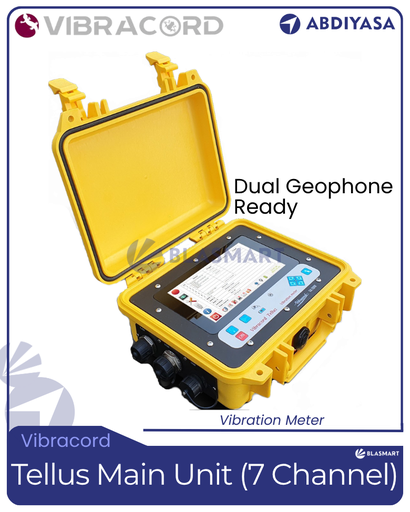

VIBRACORD Tellus Main Unit (7 Channel)
