INSTANTEL Micromate - Standard Set

0.0

A standard package of Instantel Micromate with all you need to monitor ground vibration and air overpressure at the same time from activities of mining, construction, pile driving, etc.

Includes:
1 Triaxial ISEE Geophone with Spikes
1 Linear Microphone with Stand
1 Protective Boot and Cover
1 Universal Charger

This combination does not exist.

Copy Link

copy

Link Copied

Category :

Vibration Meter

Description
Reviews

Seamlessly record vibration, sound/noise level, or air overpressure with just one monitoring unit. The Micromate was custom engineered with a rugged and reliable design to withstand harsh conditions, including water resistance. Experience zero dead time that includes 10 to 15 days of uninterrupted monitoring with the provided internal battery. The Micromate’s 15 MB of memory can store up to 1,000 events, upgradeable to 4,000 events with the extended 60 MB memory option.

The Micromate is light and portable. It is small enough to fit in the palm of your hand and features a high-resolution color touchscreen display with a QWERTY keypad. It features a built-in USB port so you can easily connect a USB flash drive to transfer events or even update the unit’s firmware – quickly, easily, and all in the field without the need for a computer.

The Micromate comes with three channels for a triaxial geophone and one channel for an air overpressure or sound-level microphone. Each base unit is coupled with a geophone and configured to meet one of the following industry standards: International Society of Explosives Engineers (ISEE-2022), Deutsches Institut für Normung (DIN 45669-1), Swedish Blasting (SS4604866), and Swedish Pile Driving (SS025211).

Key Features

Fits in the palm of your hand.
Histogram-Combo mode captures full-waveform events in parallel to Histogram recording.
Versatile USB Port for USB memory sticks, field printer, and modem.
Large, easy-to-read, color touch-screen display.
Can store over 1,000 events (4,000 with optional memory).
Trigger multiple units within 1 sample of each other.
Synchronizes Class 1 noise monitoring or air-overpressure and vibration data on the same monitoring unit.
Internal battery lasting up to 15 days.
Uninterrupted monitoring with zero dead-time between events

Range of Applications

Construction
Blasting
Demolitions
Pile Driving
Compaction
Heavy Transportation
Environmental
Tunnels and Subways
Sound/Noise
Structural
Bridges

Specifications

Dimensions	101.6 x 135.1 x 44.5 mm (4.15 x 5.32 x 1.75 in)
Unit Weight	0.5 kg (1.1 lbs)
Battery	10-day rechargeable lithium-ion (optional 15-day battery upgrade available)
User Interface	10 domed tactile with separate keys for common functions
Display	QVGA, 320 x 240 color touchscreen
PC Interface	USB
Auxiliary Inputs and Outputs	External Trigger and Remote Alarm (factory-installed option)
Optional Features	Printer, GPS, Vision II (cloud-based software)
Remote Communications	Supported modems: Sierra Wireless™ Airlink® RV-55, RV50X, LX60.
Record Modes	Waveform, Waveform Manual, Histogram, and Histogram-Combo™ (unit captures triggered waveforms while recording in Histogram mode)
Electrical Standard	CE Class B - The Micromate has been tested and passed IEC 61010-1:2010
LCD Operating Temperature	-10 to 55 °C (14 to 131 °F)
Electronics Operating Temperature	-40 to 45 °C (-40 to 113 °F)
Operating Temperature	-40 to 55 °C (-40 to 131 °F)

Suggested Accessories

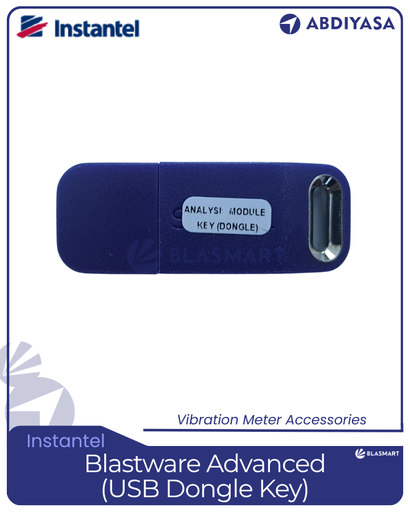

INSTANTEL Blastware Advanced (USB Dongle Key)

0.0

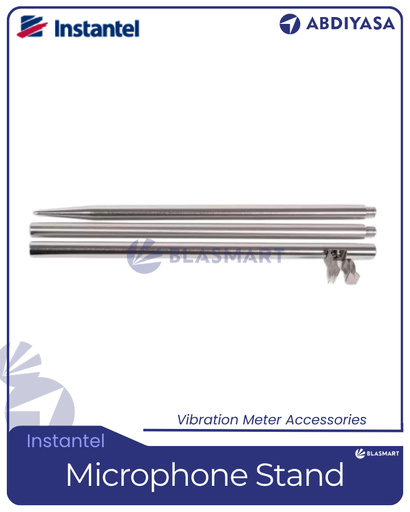

INSTANTEL Microphone Stand

0.0

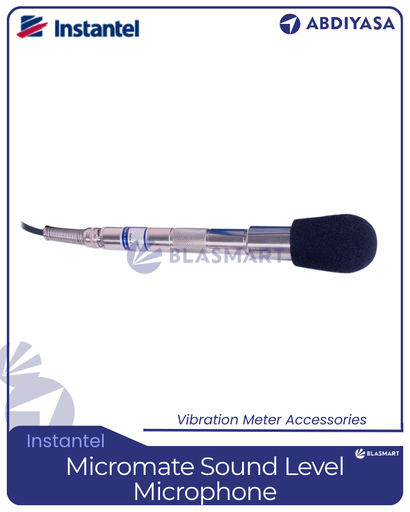

INSTANTEL Micromate Sound Level Microphone

0.0

The sound level microphone for Micromate to automate noise monitoring from building activities, construction, traffic, and mining operations.

Calibrated to the IEC 61672-1 standard.
Includes a 2 m (6.6 ft) cable and a Microphone Stand Assembly.

Suggested Alternatives

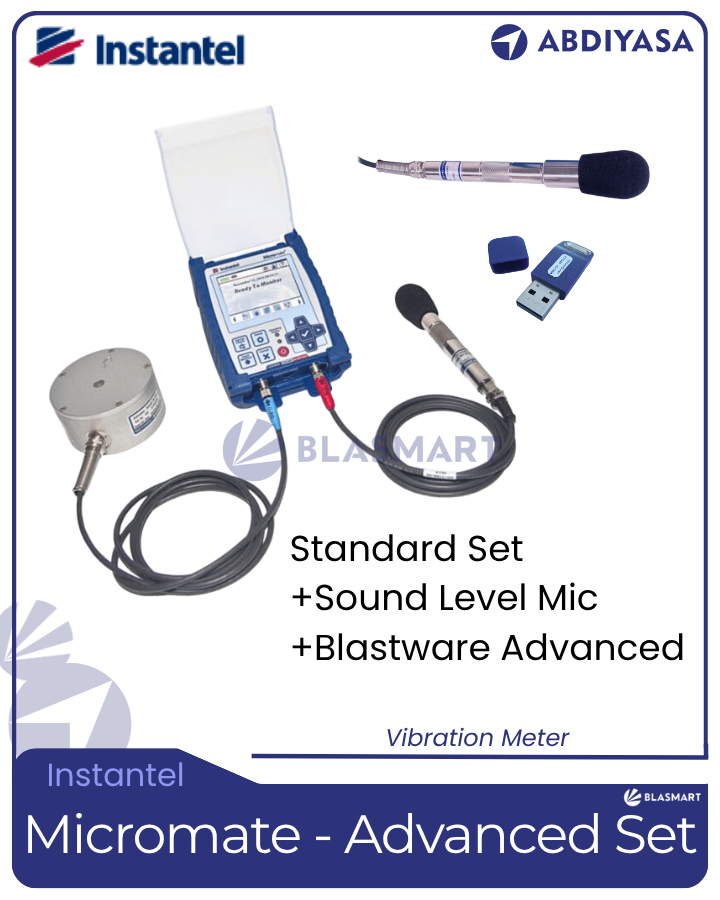

INSTANTEL Micromate - Advanced Set

0.0

An advanced package of Instantel Micromate with all you need to monitor ground vibration, air overpressure or noise at the same time from activities of mining, construction, pile driving, etc.
Analyze slope stability, signature hole, etc. with Blastware Advanced Module, unlocked with the dongle key.

Includes:
1 Triaxial ISEE Geophone with Spikes
1 Linear Microphone with Stand
1 Sound Level Microphone with Stand
1 USB Dongle Key for Blastware Advanced Module
1 Protective Boot and Cover
1 Universal Charger

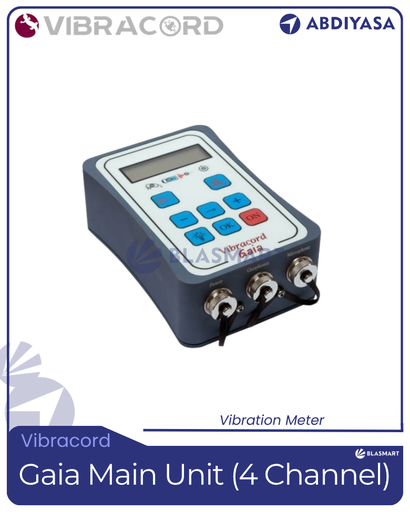

VIBRACORD Gaia Main Unit (4 Channel)
