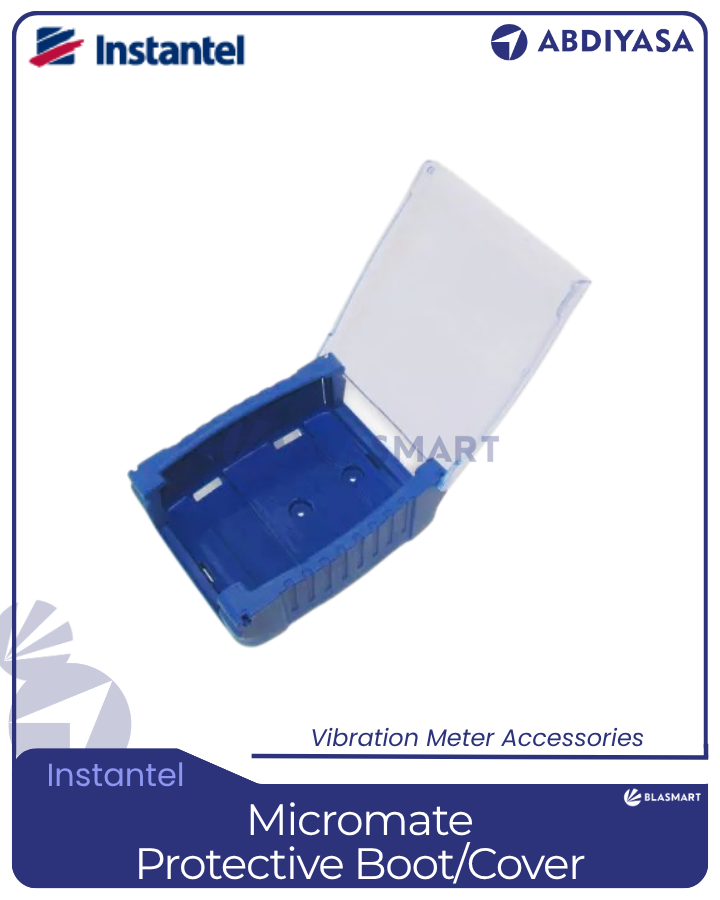

INSTANTEL Micromate Protective Boot and Cover

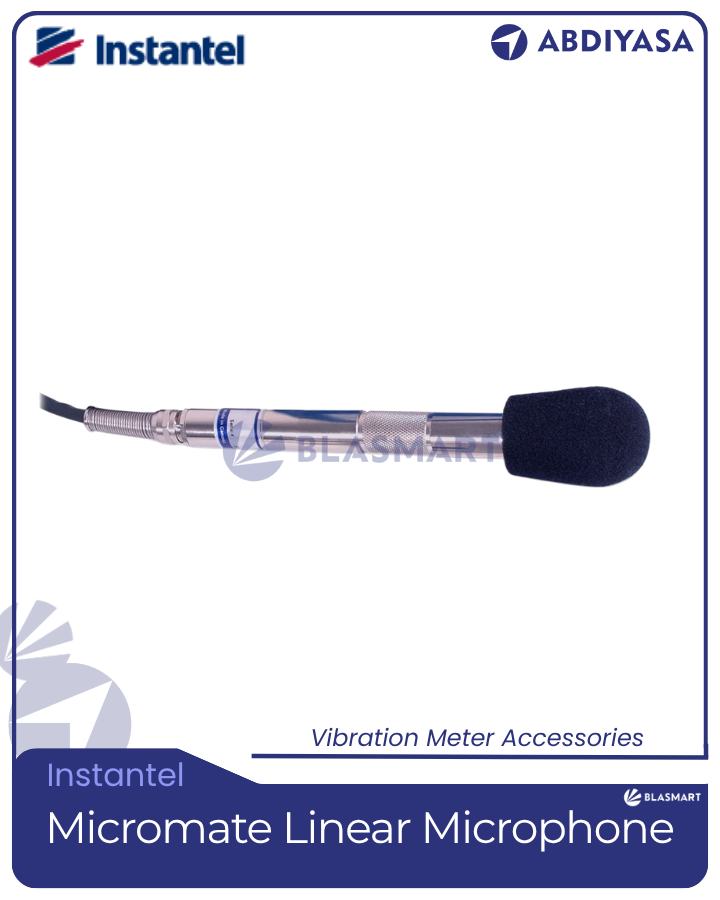

INSTANTEL Micromate Linear Microphone

0.0

The linear microphone for Micromate to automate monitoring of air overpressure.

Calibrated to the ISEE-2022 standard.
Includes a 2 m (6.6 ft) cable and Microphone Stand Assembly.

This combination does not exist.

Copy Link

copy

Link Copied

Category :

Vibration Meter Accessories

Description
Reviews

The Linear Microphone for the Micromate monitoring unit, automates the monitoring of air overpressure and vibration monitoring in the same unit, making it a cost effective and flexible device for these applications.

The Linear Microphone is calibrated to the ISEE-2022 standard with a frequency measuring range from 2 to 250 Hertz and an amplitude range up to 500 Pascals (0.0725 psi, or 148 dB).

Range of Applications

Construction
Dynamic Compaction
Tunnels and Subways
Blasting
Demolitions
Quarries

Specifications:

Response Standard	ISEE - 2022
Frequency Weighting	Linear
Frequency Range	2 Hz - 250 Hz
Amplitude Range	Up to 500 Pa (0.0725 psi, or 148 dB)
Trigger Levels	2 to 500 Pa (0.00029 to 0.0725 psi, or 100 dB(L) to 148 dB(L))
Sample Rates	1,024 - 4,096 S/s
Resolution	0.0156 Pa (0.05 dB)
Cable Length	2 m (6.6 ft)
Maximum Cable Length	75 m (246.1 ft)
Temperature Range	-40° to 50°C (-40° to 122°F)

Suggested Accessories

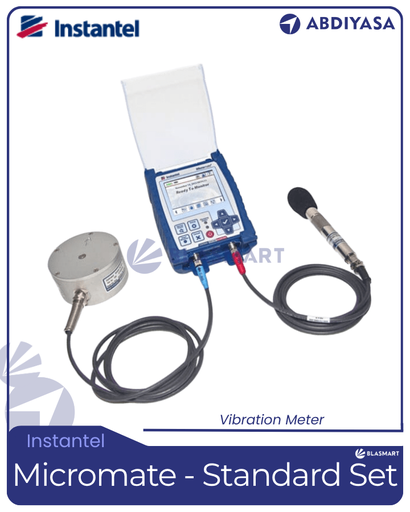

INSTANTEL Micromate - Standard Set

0.0

A standard package of Instantel Micromate with all you need to monitor ground vibration and air overpressure at the same time from activities of mining, construction, pile driving, etc.

Includes:
1 Triaxial ISEE Geophone with Spikes
1 Linear Microphone with Stand
1 Protective Boot and Cover
1 Universal Charger

Suggested Alternatives

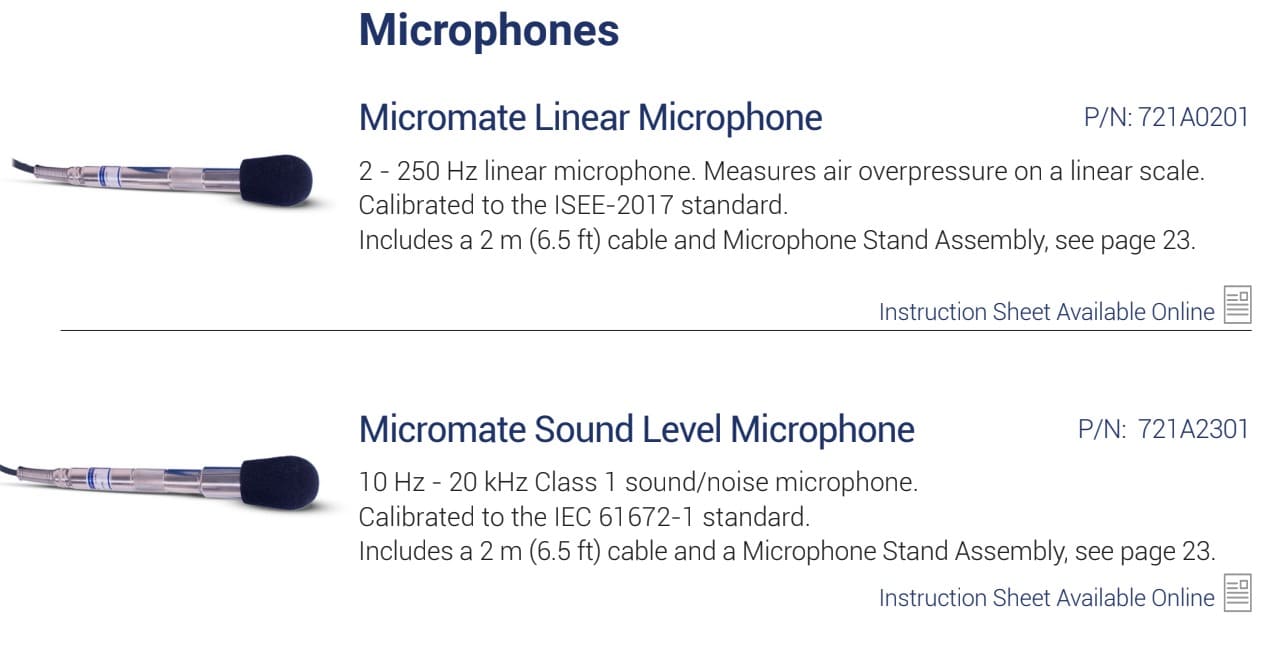

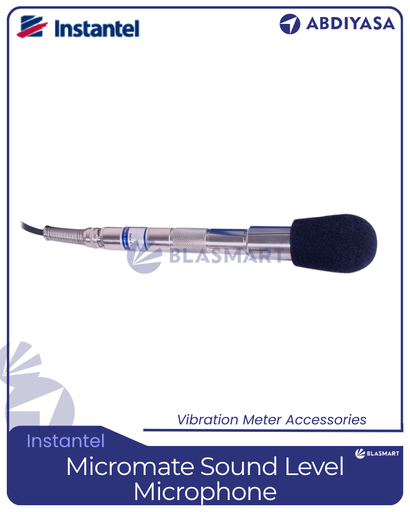

INSTANTEL Micromate Sound Level Microphone

0.0

The sound level microphone for Micromate to automate noise monitoring from building activities, construction, traffic, and mining operations.

Calibrated to the IEC 61672-1 standard.
Includes a 2 m (6.6 ft) cable and a Microphone Stand Assembly.

Suggested alternatives: Compare
