A 1000-meter "Green" MREL PROBECABLE, standard cable for one or multiple blastholes.
Gaia main unit with 4 channels for measurement: 3 for vibration and 1 for air overpressure.


Vibracord Gaia is the choice for you when ground vibration and air overpressure monitoring is challenged by the extreme and rugged condition.
The sound level microphone for Micromate to automate noise monitoring from building activities, construction, traffic, and mining operations.

Calibrated to the IEC 61672-1 standard.
Includes a 2 m (6.6 ft) cable and a Microphone Stand Assembly.


Instantel Micromate vibration monitor, ISEE certified.
The latest innovation from Vibracord, with all you ever need in a vibration meter.
Monitor ground vibration and air overpressure at the same time.
A blasting machine from KOBLA, for detonating up to 500 Ω load of caps simultaneously.

Specifications:

Max. Load : 500 Ω
Output Voltage : 1500 V
Output Energy : 47 J
Electric Capacity : 45uF
Charging Time : 20 sec
A precision instrument from Reo for measuring blasting circuit resistance.

Range : 0-1999 ohms
Accuracy : +/- 1 ohm
Max. Test Current : 2 mA
A KOBLA brand ohm meter, essential for pre-blast circuit testing.

Range : 0-2000 ohms
Accuracy : 1 ohm
Response : 2 readings / sec

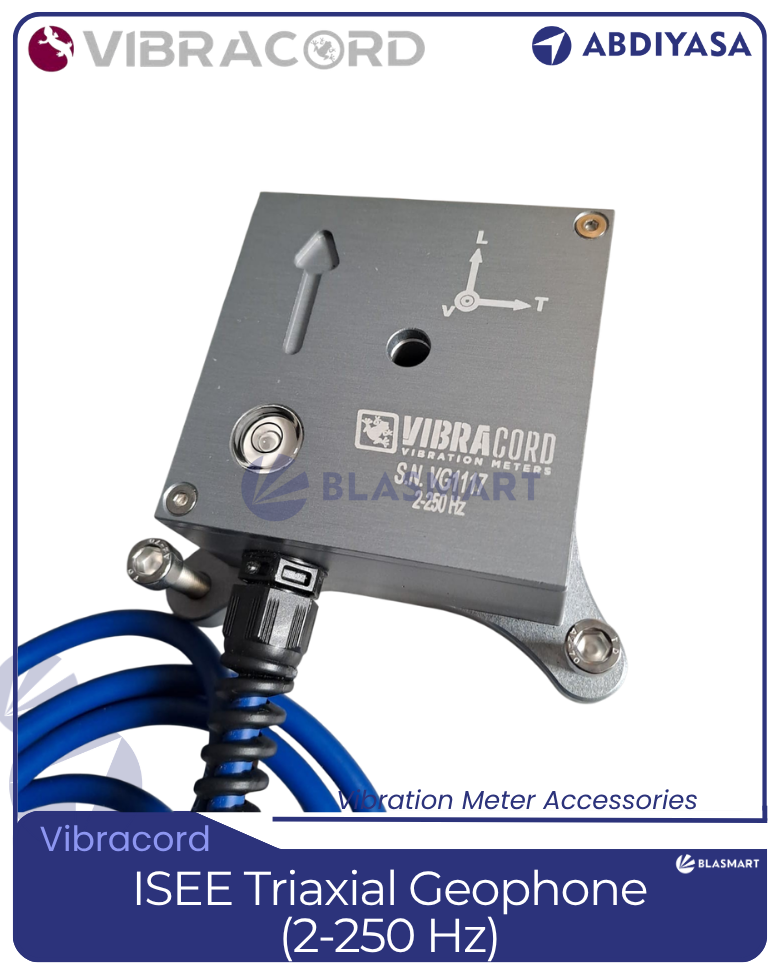

A 2-250 Hz geophone for Micromate to monitor vibration in 3-axis (longitudinal, vertical, transversal)

Calibrated to the ISEE-2022 standard.
Includes Triaxial Geophone Mounting Spikes
A blasting machine from KOBLA, for detonating up to 100 Ω load of caps simultaneously.

Specification:

Max. Load : 100 Ω
Output Voltage : 1200 V
Output Energy : 11 J
Electric Capacity : 15 uF
Charging Time : 4 sec
A blasting machine from KOBLA, for detonating up to 200 Ω load of caps simultaneously.

Specifications:

Max. Load : 200 Ω
Output Voltage : 1500 V
Output Energy : 16 J
Electric Capacity : 15 uF
Charging Time : 5 sec
The most affordable VOD Recorder.

- Affordable, easy to use and extremely portable.
- 1 MHz recording rate, 12 bit resolution.
- Outstanding operational temperature range.
- Long operational battery life.
- Unmatched durability - rain, snow, and dust proof.

This item includes:

- HandiTrap II™ VOD Recorder
- 120 or 230 VAC Battery Charger
- USB Communications Cable
- External Trigger Adapter
- Padded HandiTrap II™ Carry Case
- HandiTrap II™ Operations Manual (English)
- DAS™ Data Acquisition Suite Standard Edition Software for Windows XP™ and later
- MREL’s 1 year Comprehensive 100% Parts and Labour Warranty.
A 1000-meter VOD probecable reinforced with increased durability, highest tensile strength for large ground movement.
The latest innovation from Vibracord, with all you ever need in a vibration meter.
Monitor ground vibration and air overpressure at the same time.

Includes:
- Recording unit
- Two 3-axis block of geophones for ground vibration monitoring
- One linear microphone for air overpressure recording
- Six spikes for geophone fixation
- Tripod for microphone
- Universal power adaptor
- Vibration analysis software
- User Manual
- Certificate of calibration
- Carrying bag
300 m (984 ft.) RG-58C/U coaxial cable, complete with steel cable reel and one male BNC connector (attached to one end of cable), to carry the VOD signal from the VOD PROBECABLE or VOD PROBEROD to the MREL VOD Recorder. Compatible with all MREL VOD Recorders except for the HandiTrap™ and HandiTrap II™ VOD Recorders.
AC/DC adaptor to charge Vibracord main recording units.
